Description

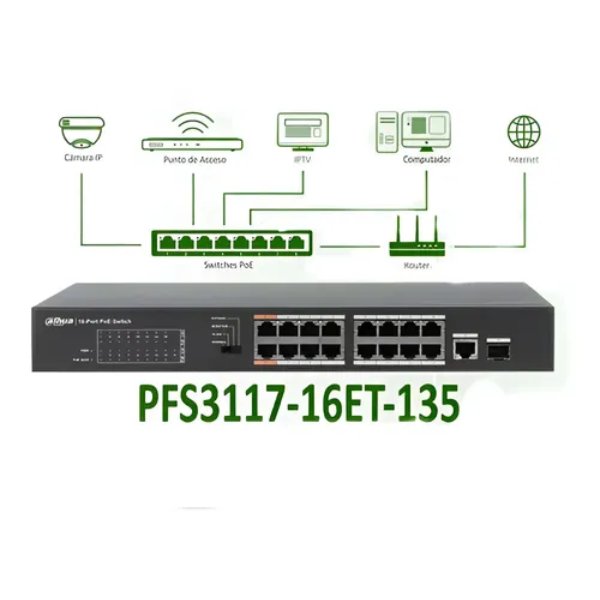

• Model : DH-PFS3117-16ET-135
• Standards : IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
• Interface : 16 x 10/100Mbps RJ45
• 1 x Gigabit Combo (RJ45/SFP)
• Transfer Method : Store-and-Forward
• Switching Capacity : 5.2Gbps
• Packet Forwarding Rate : 3.87Mpps
• Packet Buffer : 2.75Mbit
• PoE Ports(RJ45) :
• Port 1/2 : Hi-PoE/PoE+/PoE
• Port 1-16 : PoE+/PoE
• Power Pin Assignment :
• 1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
• Other PoE port: 4/5 (+), 7/8 (-)
• PoE Budget : 135W
• Mode :
• Default mode : All ports can communicate with each other
• Isolation mode : PoE port cannot communicate with each other, but can communicate with the uplink Combo port
• CCTV mode : 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other
• Extender mode : 1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other
• Indicators :
• Per Device : Power: Green MAX : Red
• Per Port : Link/Act: Green PoE: Yellow
• Power Supply : AC 100V~240V 50/60HZ
• Dimensions (W × D × H) : 34020043 mm (13” metal case)
